IEC61850 ICD Designer
Design & Manage your IED Model Efficiently
We are proud to present our brand-new IEC 61850 ICD Designer, a robust and user-friendly tool developed to replace our previous version offered through a partner. Our latest tool provides an enhanced experience for creating and managing intelligent electronic devices (IEDs) models, aligning with the IEC 61850 standard.
UML-based Diagrams to prototype, reuse and manage Data Types
Extract CID from SCD exported by other tools or provided by third parties
Intelligent creation, model integrity auto detection and correction
Convert CID into standard compliant ICD Template files
Key Features and Enhancements of IEC 61850 ICD Designer
The IEC 61850 ICD Designer boasts an intuitive and modern interface, making it easy for users to navigate and perform configurations. Most tasks can be accomplished through simple drag-and-drop operations, significantly improving efficiency and reducing the learning curve.

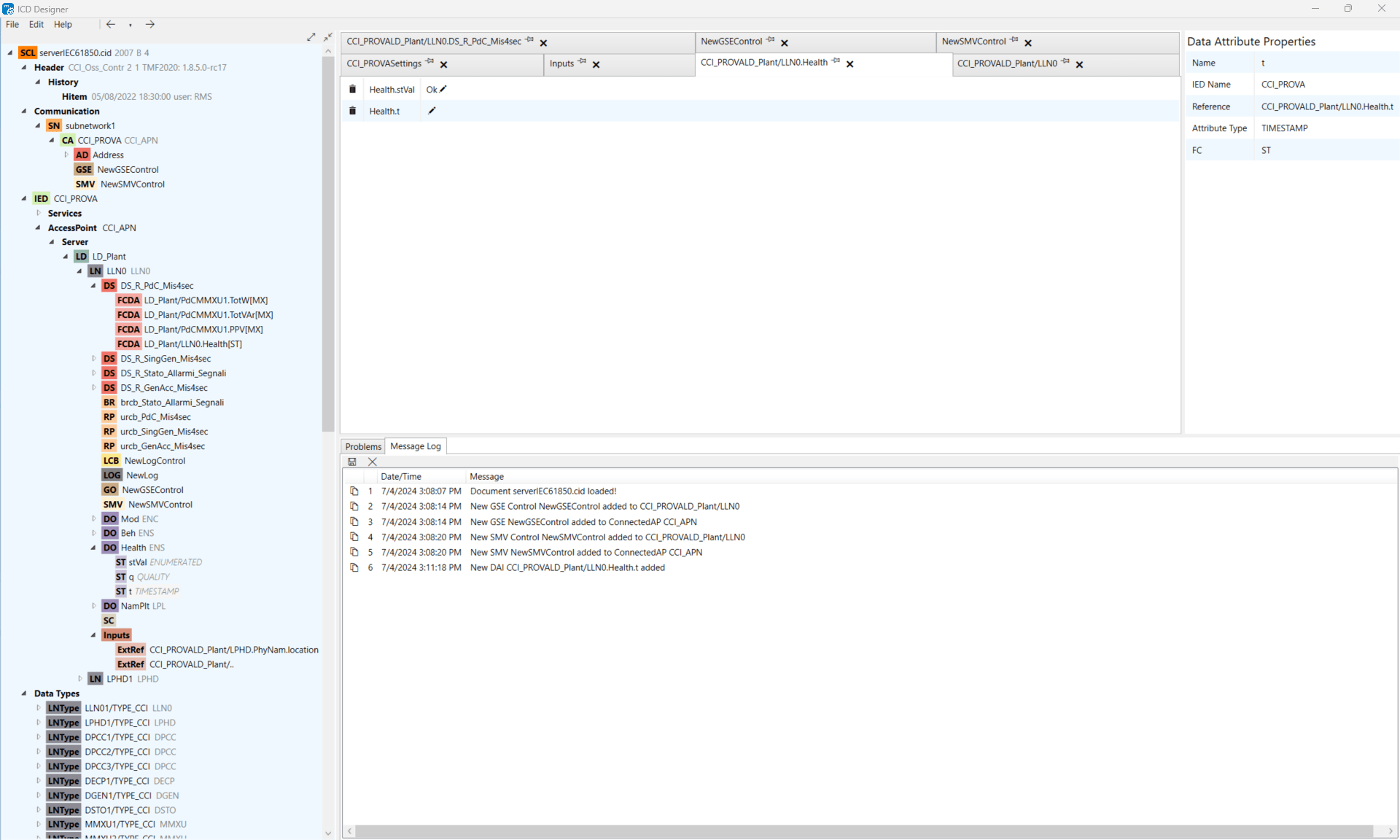

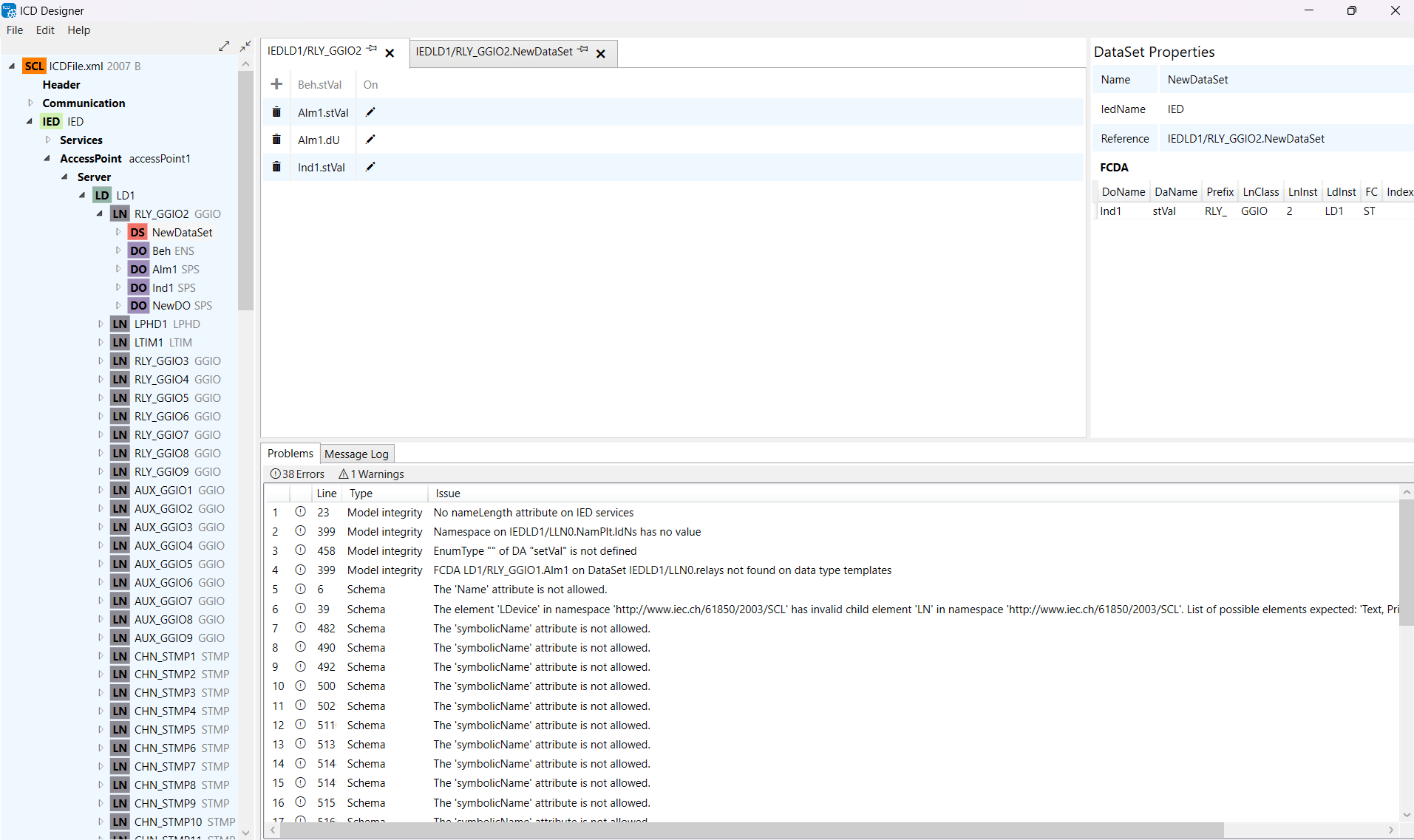

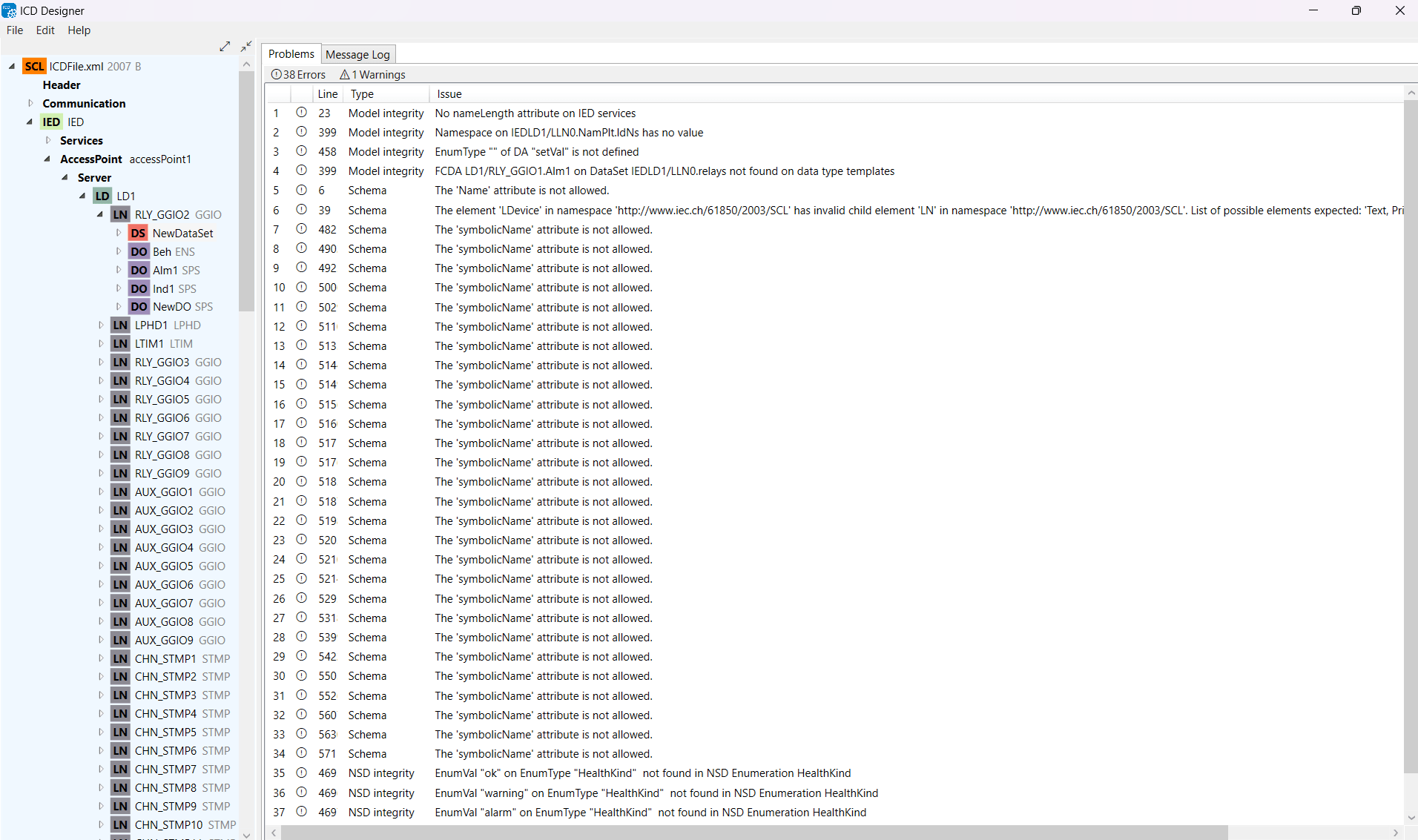

To ensure the integrity and compliance of your configurations, the IEC 61850 ICD Designer includes error and warning messages for model integrity, schema, and NSD integrity in accordance with IEC 61850 standards. This feature helps identify and resolve issues promptly, ensuring a reliable configuration process.

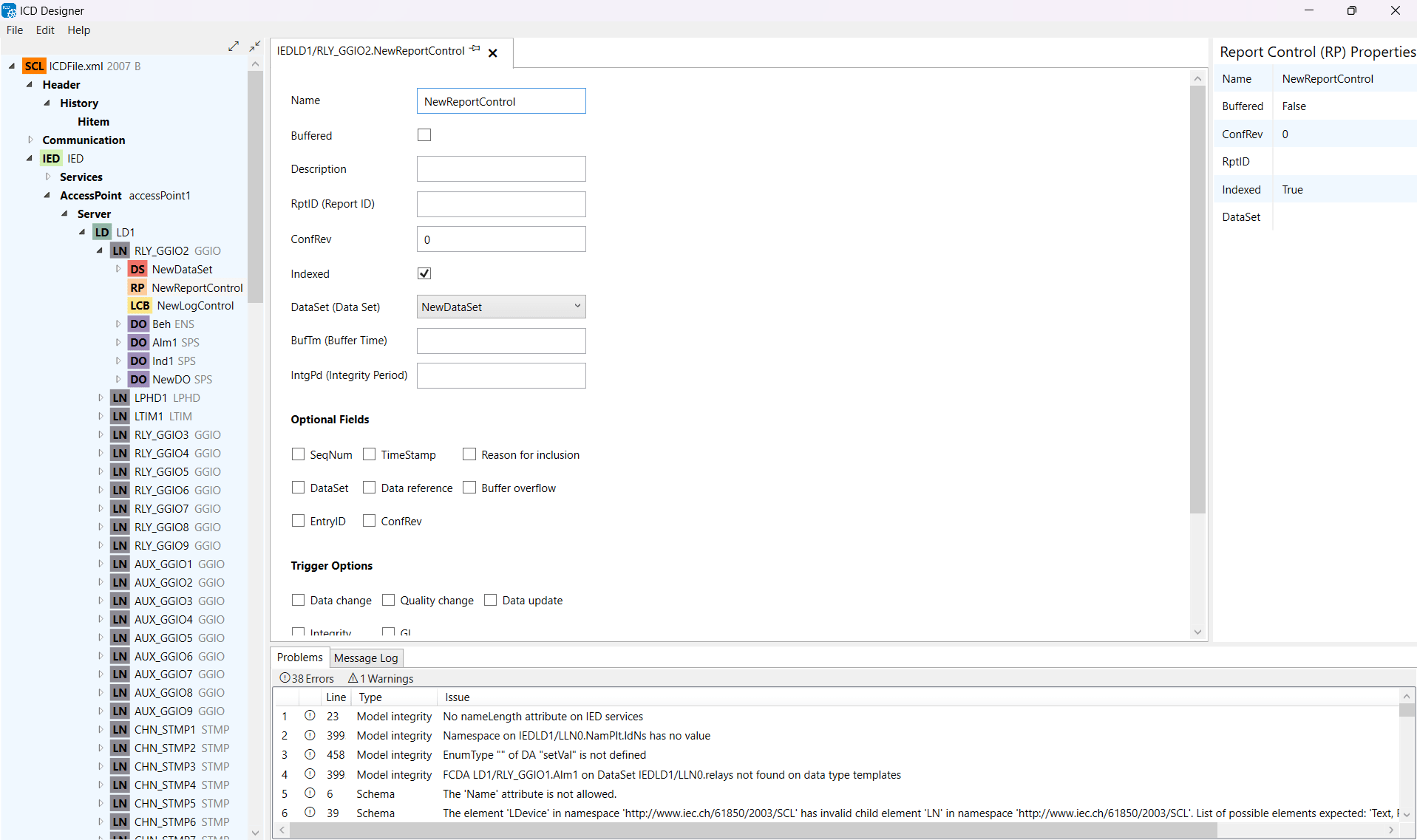

The tool supports the configuration of various control blocks (such as report control, log control, and sampled value control) and data sets. Users can add, remove, and rename data sets, and configure data set entries with ease.

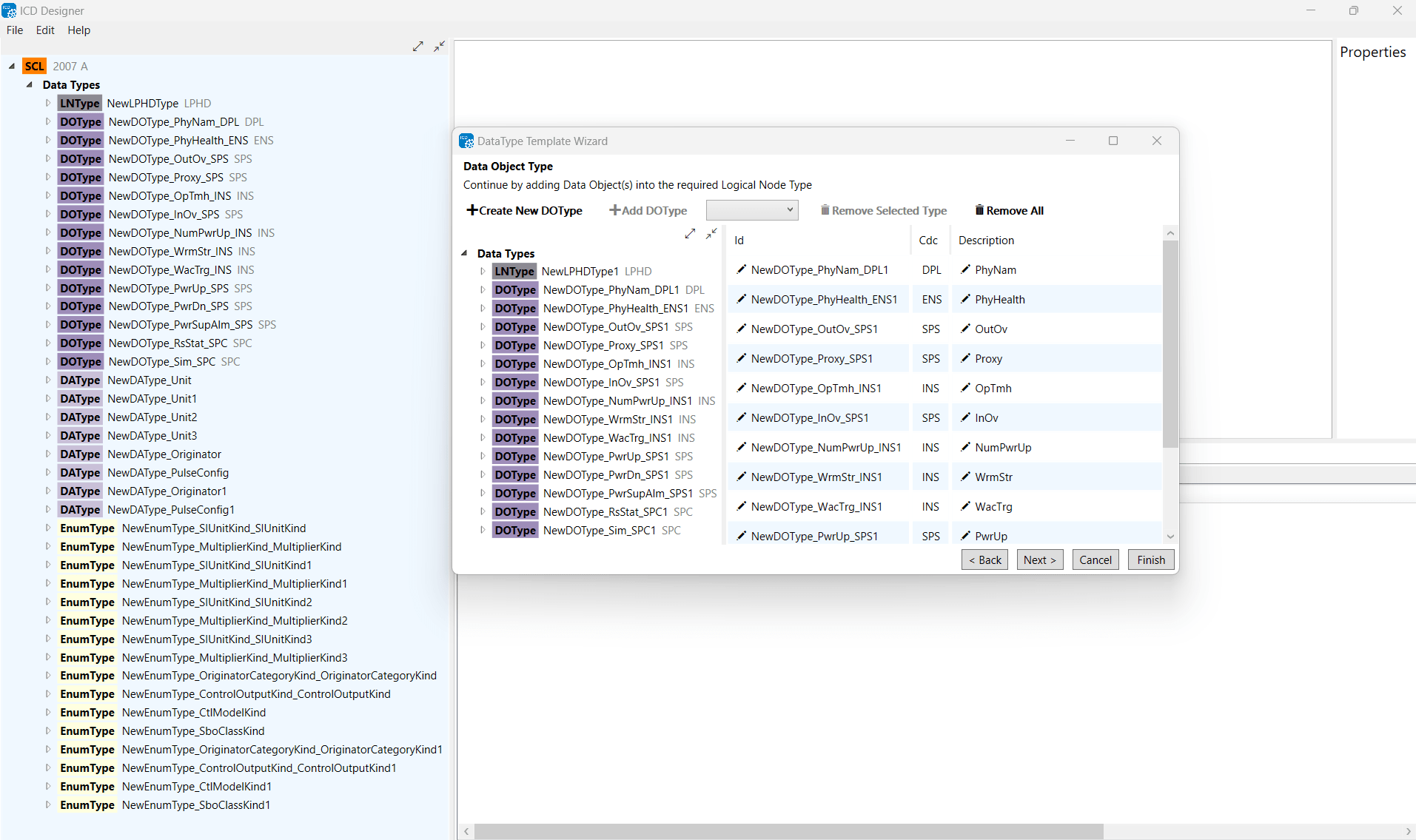

The MZ automation Wizard does the hard work for you. Providing powerful capabilities to create various data type templates from scratch within the IEC 61850 protocol. Users have the flexibility to define and manage data type templates, making the tool highly versatile and adaptable to different requirements.
With our IEC 61850 ICD Designer, users can create and load ICD files, configure address parameters, IED names, control blocks, data sets, logical node parameter values, and more. The tool allows for the addition and editing of data type templates from NSD according to the document version and revision.

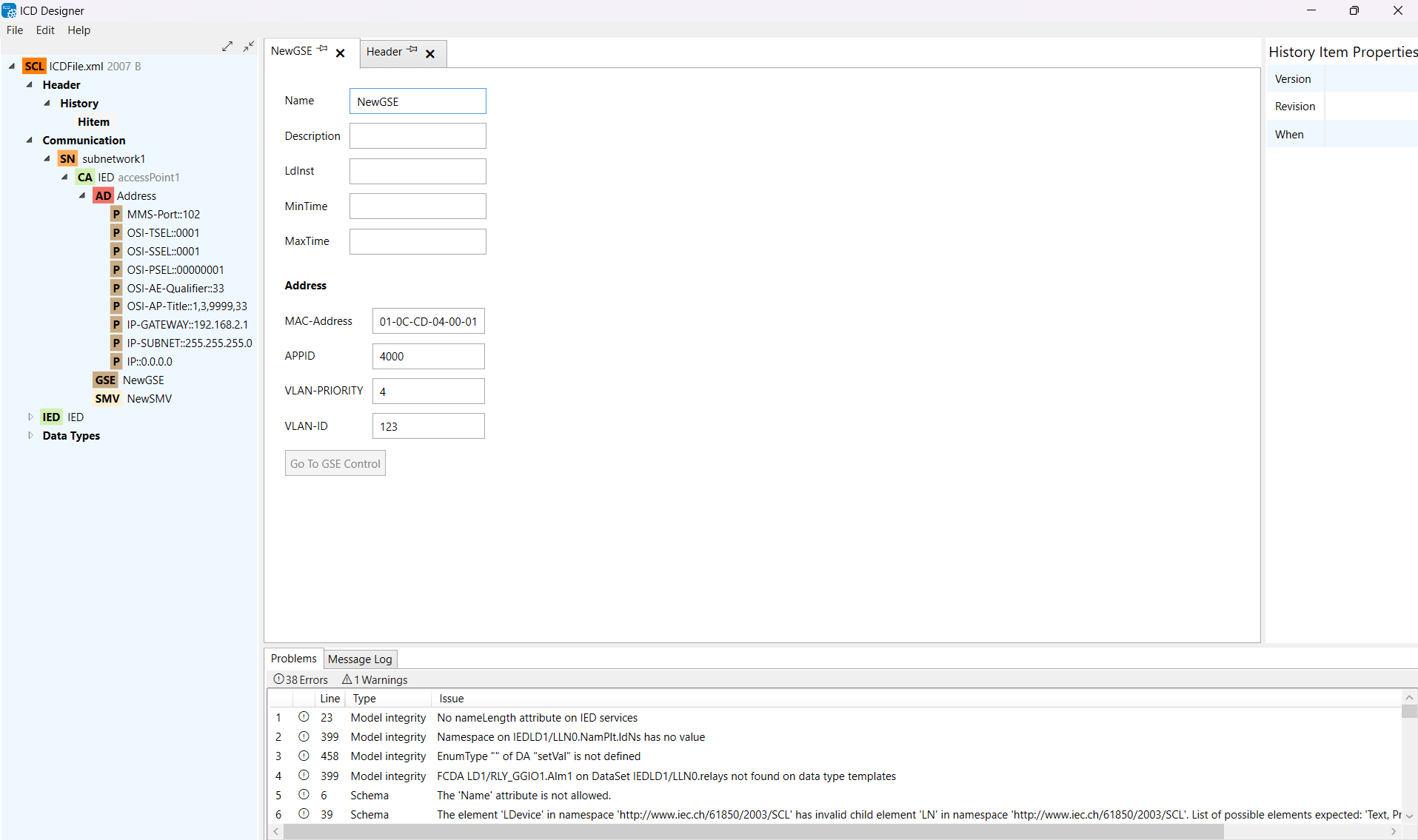

Users can efficiently configure the header and communication settings of their IED models. This includes setting up TCP/IP settings, ISO settings, and security parameters, ensuring that all aspects of the IED configuration are covered comprehensively.

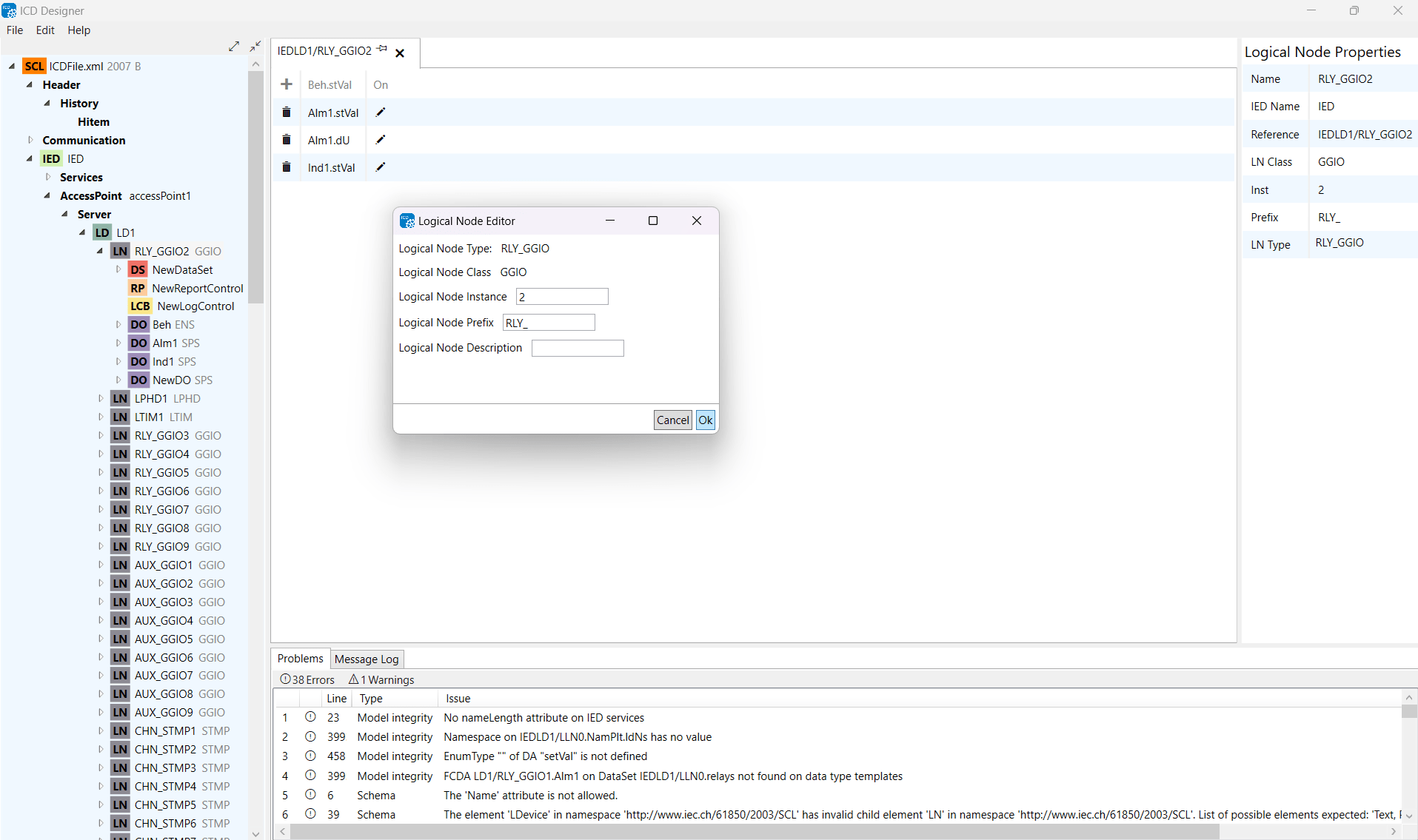

Configure logical node parameters with precision. The tool allows users to set and modify parameters within logical nodes, ensuring that each IED model is accurately defined and meets the required specifications.

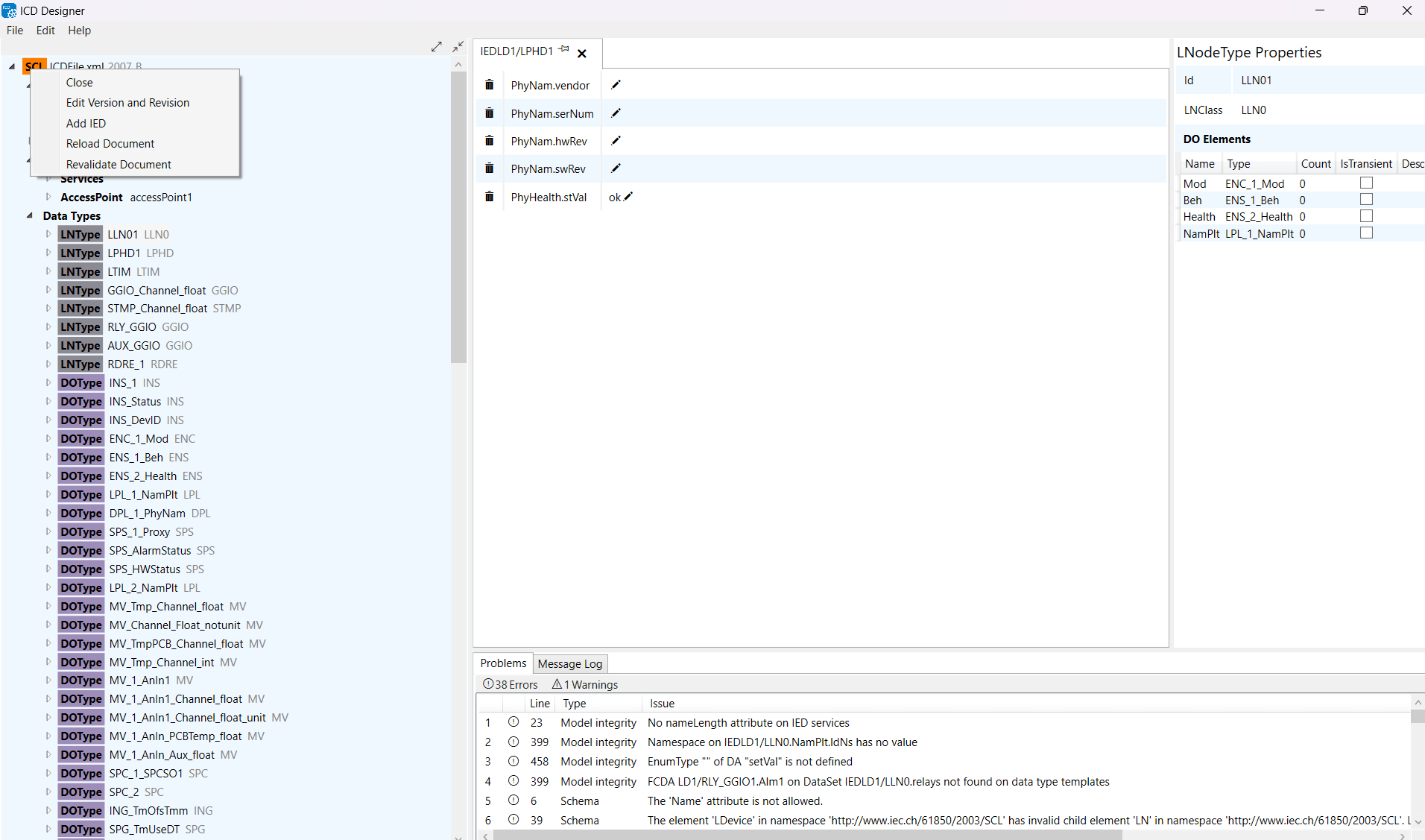

Our IEC 61850 ICD Designer is designed to seamlessly integrate into your existing workflow. It supports the import and export of configurations, enabling easy management and sharing of IED models. Additionally, the tool’s flexibility ensures compatibility with various platforms and environments.
Experience the Difference with MZ automation’s IEC 61850 ICD Designer
MZ automation’s IEC 61850 ICD Designer is a cutting-edge tool engineered to provide unparalleled efficiency and reliability in configuring and managing IED models. By upgrading to our new ICD Designer, you gain access to a powerful, user-friendly interface, advanced configuration capabilities, and robust error-checking mechanisms, ensuring your IED models are always compliant and optimized for performance.
Switch to our new IEC 61850 ICD Designer today and experience the ultimate solution for your IED configuration needs.
Single Seat License
Electronic or USB dongle license
IEC 61850 ICD Designer is a professional SCL design and editing tool. It has a lot of advanced features to easily create standard compliant data models. It has extensive support for known domains. It is available as a hardware bound electronic license key or alternatively as USB Key.
